Chicago Metallic® Spanfast® Drywall Grid System is available in a heavy-duty design, and is built with HDG 40 steel. This gypsum panel suspension system is an ideal choice for short spans or congested plenums where installing hanger wires is difficult and time consuming and, in many applications, eliminates the need for hanger wires. SpanFast™ drywall framing system reduces onsite labor by using a pre-notched drywall ceiling track to lock the furring tees in place. Chicago Metallic™ grid systems are third party certified to meet ASTM standards and are listed with ICCES Evaluation Services, reference report ESR-2631 for further details.

Performance Properties:
-Heavy duty drywall grid construction increases strength and decreases roll-over during installation.
-Pre-notched wall track allows for quick drywall grid installation
-This drywall grid ceiling system either reduces or eliminates the need for hanger wires at spans less than 7ft
-Sustainable: Minimum 25% recycled content, 100% locally recyclable
-Chicago Metallic® suspension systems meet a Class-A flame spread rating in accordance with ASTM standard E1264-08

Material

ASTM C 635 Heavy Duty (HD) furring runner classification; commercial quality 0.20 steel, G40 hot-dip galvanized body and knurled face cap, 1-3/8” width, 1-1/2” height.
Note: A metallurgist should be consulted regarding the suitability of this product for the environmental conditions in which it is being installed.

Application Areas

Condos, hotels, motels, suites, ​dorms, apartments, rest ​rooms, town homes, multi-​housing and closets.
Back

Product Performance

Load Bearing Expand to view deflection table
 Component Load Test Data and Material
Furring Runner Length Spacing Allowable Load per ASTM C645
Allowable Load (lb/ft2) With No Lateral Bracing
4' 5' 6' 7' 8' 10' 12'
640.SF.120 120" 16" 10.23 10.23 MSS
640.SF.120 120" 24" 6.8 6.8 MSS
640.SF.144 144" 16" 6.05 6.05 MSS
640.SF.144 144" 24" 4.03 4.03 MSS
640.SF.168 168" 16" 3.86, 28.57 MSS
640.SF.168 168" 24" 19.0 MSS
640.SF.72 72" 16" 6.05
640.SF.72 72" 24" 4.03
640.SF.96 96" 16" 18.8 18.8 MSS
640.SF.96 96" 24" 12.5 12.5 MSS
640.SF.168 168" 24" 19.00

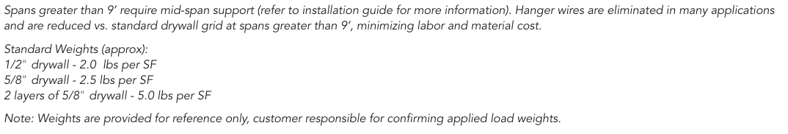

Hanger wires are eliminated in many applica​tions, and are reduced ​vs. standard drywall grid ​at spans greater than 7’, ​minimizing labor and ​material costs.

*MSS - with Mid-Span Support

Environment Materials and Resources (MR)
-Waste Management Planning
-Interiors Life Cycle Impact Reduction
-Environmental Product Declarations
-Sourcing of Raw Materials
-Material Ingredients
-Waste Management
Indoor Environmental Quality (EQ)
-Low-Emitting Materials
-Interior Lighting
-Acoustic Performance
Back
 Component Load Test Data and Material
Furring Runner Length Spacing Allowable Load per ASTM C645
Allowable Load (lb/ft2) With No Lateral Bracing
4' 5' 6' 7' 8' 10' 12'
640.SF.120 120" 16" 10.23 10.23 MSS
640.SF.120 120" 24" 6.8 6.8 MSS
640.SF.144 144" 16" 6.05 6.05 MSS
640.SF.144 144" 24" 4.03 4.03 MSS
640.SF.168 168" 16" 3.86, 28.57 MSS
640.SF.168 168" 24" 19.0 MSS
640.SF.72 72" 16" 6.05
640.SF.72 72" 24" 4.03
640.SF.96 96" 16" 18.8 18.8 MSS
640.SF.96 96" 24" 12.5 12.5 MSS
640.SF.168 168" 24" 19.00

Hanger wires are eliminated in many applica​tions, and are reduced ​vs. standard drywall grid ​at spans greater than 7’, ​minimizing labor and ​material costs.

*MSS - with Mid-Span Support

Back

Accessories

148780_r1_ROC_GridDS_EPSFiles_SingleImages_Spanfast
Back

Profiles and Accessories

Wall Angles & Channels

Component Length Height Face Width Seismic Recycled Content Percentage HDG Coating Packaging
Wall Angles RFN-NA
Wall Track_Drywall 144" 1-9/16" 1" C, DEF 25% G40 See Packaging Dimensions

Main Runners

Component Length Height Face Width Slot Spacing Seismic Recycled Content Percentage Slotting Class Duty HDG Coating Packaging
Main Runners RFN-NA
Furring Runner_Drywall 72" 1-1/2" 1-3/8" hanger holes 5” OC C, DEF 25% hanger holes 5” OC, HD HD G40 See Packaging Dimensions
Furring Runner_Drywall 96" 1-1/2" 1-3/8" hanger holes 5” OC C, DEF 25% hanger holes 5” OC, HD HD G40 See Packaging Dimensions
Furring Runner_Drywall 144" 1-1/2" 1-3/8" hanger holes 5” OC C, DEF 25% hanger holes 5” OC, HD HD G40 See Packaging Dimensions
Furring Runner_Drywall 168" 1-1/2" 1-3/8" hanger holes 5” OC C, DEF 25% hanger holes 5” OC, HD HD G40 See Packaging Dimensions
Furring Runner_Drywall 120" 1-1/2" 1-3/8" hanger holes 5” OC C, DEF 25% hanger holes 5” OC, HD HD G40 See Packaging Dimensions

Accessories RFN-NA
AccessoriesGuide_VPCLIP C, DEF See Packaging Dimensions

Accessories
