2500x1406px_Rockfon-MediCare-Plus

Rockfon® Medical™ Plus

Rockfon® Medical™ Plus provides outstanding performance and aesthetics to meet the rigorous demands for hospital ceiling applications.

Budget

$ $ $ $ $

Download Datasheet
Download Datasheet
Back
  • Order Sample
Can be cleaned with diluted solutions of ammonia, chlorine, quaternary ammonium and hydrogen peroxide
Does not contribute to the growth of MRSA
Has a low particle emission (ISO Class 4, ISO14644-1) for better air cleanliness
The rear side of the panel is covered by a back fleece. The edges are sealed.
Excellent sound absorption (NRC = 0.90)
Optimal design freedom due to a large selection of edges (lay-in, tegular and concealed)

Recommended Applications

Healthcare

Consulting Room
Laboratory
Treatment Room
Ward
Corridor

Back
  • Order Sample

Noise Reduce Coefficient (NRC)

Edge Thickness (ft/in) Min suspension height (in) αw NRC Class (ISO) Sound curve
CDX 7/8"
Sound curve
SL 3/4"
Sound curve
SLN 3/4"
Sound curve
SQ 3/4"
Sound curve

Sound absorption is measured in accordance with ISO 354.

Sound absorption data αp, αw and absorption class are calculated in accordance with ISO 11654. Sound absorption properties of islands and baffles are quantified by the equivalent sound absorption area Aeq expressed as m² per item.

Back
Sound curve
Back
Sound curve
Back
Sound curve
Back
Sound curve

Product Specifications

Download Datasheet
Compare
Ceiling Attenuation Class (CAC) Ceiling Attenuation Class (CAC) 22
Room-to-room sound insulation is measured in accordance with ASTM E1414. The measured value is reported as a Ceiling Attenuation Class (CAC).
Fire Performance Fire Performance Surface burning characteristics:
UL723 (ASTM E84) Flame Spread Index: 0
Smoke Developed Index (UL Labeled): 5
CAN/ULC S102 Flame Spread Index: 5
Smoke Developed Index: 0
Fire Class A
Light Reflection Light Reflection Light reflection: 0.830
Light reflection expressed in % is measured in accordance with ASTM E1477.
Humidity And Sag Resistance Humidity And Sag Resistance Up to 100% RH
Rockfon ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 32 °F to 104 °F. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimizes the final weight of the fully-installed ceiling.

*Rockfon® stone wool ceiling panels are dimensionally stable at up to 100% relative humidity.
Surface Durability Surface Durability Enhanced durability and dirt resistance.
The surface of some Rockfon products is specially treated to provide enhanced durability and dirt resistance.
Cleaning Cleaning Vacuum, Damp cloth, Chemical resistance: resistant to diluted solutions of ammonia, chlorine, quaternary ammonium and hydrogen peroxide
Vacuum: The surface can be vacuum cleaned with a soft brush attachment.

Damp cloth: The surface can be cleaned using a damp cloth or sponge with a slightly alkaline detergent (pH between 7 and 9) without alcohol, ammonia or chlorine. This may render the surface slightly shinier, so we recommend cleaning the entire surface evenly.
Hygiene Hygiene Stone wool provides no sustenance to microorganisms
Microbiological class M1 fulfilling the requirements of Zone 4 (very high risk) defined by NF S 90-351:2013. Tested with:
- Methicillin Resistant Staphylococcus Aureus (MRSA)
- Candida Albicans
- Aspergillus Brasiliensis
The bactericidal and fungicidal effect of dry steam cleaning meets the requirements of NF EN 14561 (> 5 log10) and NF EN 14562 (> 4 log10), meaning the disinfection is very effective.
Clean Room Classification Clean Room Classification 4
Clean room classification is measured in accordance with ISO 14644-1.
Bacteriological Class M1, NF S 90-351:2013
VOC Emissions All Rockfon stone wool acoustic solutions are GREENGUARD Gold low VOC certified and meet the State of California’s Department of Public Health Services Standard Practice for Specification Section 01350 (California Section 01350) for testing chemical emissions.

Selected potential applications: LEED, WELL, CHPS, Green Globes, BREEAM Int. and CALGreen.
Environment Environment Fully recyclable
Thermal Insulation Thermal Insulation R Value (BTU Units): 2.6 - 3.1
RSI Value (Watts Units): 0.46 - 0.54
The thermal resistance of Rockfon products is measured in accordance with ASTM C518 and expressed in R-Value (hr.ft2.F/Btu) and RSI Value (m2k/W).
Material Stone wool (Mineral Wool) ceiling tiles with factory painted glass scrim surface
ASTM E1264 Classification Type XX - Stone wool base with membrane-faced overlay, Pattern E
Warranty Warranty 30-Year Limited Product Warranty. See www.rockfon.com
The surface of some Rockfon products is specially treated to provide enhanced durability and dirt resistance.
Low VOC for NA Yes
Back
Room-to-room sound insulation is measured in accordance with ASTM E1414. The measured value is reported as a Ceiling Attenuation Class (CAC).
Back
Back
Back
Light reflection expressed in % is measured in accordance with ASTM E1477.
Back
Rockfon ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 32 °F to 104 °F. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimizes the final weight of the fully-installed ceiling.

*Rockfon® stone wool ceiling panels are dimensionally stable at up to 100% relative humidity.
Back
The surface of some Rockfon products is specially treated to provide enhanced durability and dirt resistance.
Back
Vacuum: The surface can be vacuum cleaned with a soft brush attachment.

Damp cloth: The surface can be cleaned using a damp cloth or sponge with a slightly alkaline detergent (pH between 7 and 9) without alcohol, ammonia or chlorine. This may render the surface slightly shinier, so we recommend cleaning the entire surface evenly.
Back
Microbiological class M1 fulfilling the requirements of Zone 4 (very high risk) defined by NF S 90-351:2013. Tested with:
- Methicillin Resistant Staphylococcus Aureus (MRSA)
- Candida Albicans
- Aspergillus Brasiliensis
The bactericidal and fungicidal effect of dry steam cleaning meets the requirements of NF EN 14561 (> 5 log10) and NF EN 14562 (> 4 log10), meaning the disinfection is very effective.
Back
Clean room classification is measured in accordance with ISO 14644-1.
Back
Back
Back
Back
The thermal resistance of Rockfon products is measured in accordance with ASTM C518 and expressed in R-Value (hr.ft2.F/Btu) and RSI Value (m2k/W).
Back
Back
Back
The surface of some Rockfon products is specially treated to provide enhanced durability and dirt resistance.
Back

Colors

    • 133
      133 Light reflection: 0.83
Back
  • Order Sample

Configure your product

This product has 7 variants in different sizes.

01 Edge

02 Size

03 Summary

SQ

product image

Square lay in drop ceiling tiles are a cost-effective solution that provide easy access to the plenum area. They are compatible with both 15/16" and 9/16" acoustical suspension systems and are easily demountable.

illustration
Lay-in grid
Tegular grid
Concealed grid
Select length and width (in)
Select thickness (in)
Edge
Dimensions
Thickness

Full range

Edge Dimensions (ft/in) Thickness (ft/in) Weight (lbs/ft2) Recommended installation system
CDX 2' x 2' 7/8" 0.75

Noise Reduce Coefficient (NRC)

NRC 0.9
CAC 22

Tile details

Packaging

Pieces Per Package 10
Area Per Pack 40.00 ft2
SL 2' x 2' 3/4" 0.57

Noise Reduce Coefficient (NRC)

NRC 0.9
CAC 22

Tile details

Packaging

Pieces Per Package 10
Area Per Pack 40.00 ft2
SL 4' x 2' 3/4" 0.57

Noise Reduce Coefficient (NRC)

NRC 0.9
CAC 22

Tile details

Packaging

Pieces Per Package 10
Area Per Pack 80.00 ft2
SLN 2' x 2' 3/4" 0.57

Noise Reduce Coefficient (NRC)

NRC 0.9
CAC 22

Tile details

Packaging

Pieces Per Package 10
Area Per Pack 40.00 ft2
SLN 4' x 2' 3/4" 0.57

Noise Reduce Coefficient (NRC)

NRC 0.9
CAC 22

Tile details

Packaging

Pieces Per Package 10
Area Per Pack 80.00 ft2
SQ 2' x 2' 3/4" 0.45

Noise Reduce Coefficient (NRC)

NRC 0.9
CAC 22

Tile details

Packaging

Pieces Per Package 20
Area Per Pack 80.00 ft2
SQ 4' x 2' 3/4" 0.45

Noise Reduce Coefficient (NRC)

NRC 0.9
CAC 22

Tile details

Packaging

Pieces Per Package 10
Area Per Pack 80.00 ft2
Back

Noise Reduce Coefficient (NRC)

αw 22
NRC 0.9
Class
Sound curve
sound curve

Tile details

Minimum installation height "
Easy access -

Packaging

Pieces Per Package 10
Area Per Pack m2
Back

Noise Reduce Coefficient (NRC)

αw 22
NRC 0.9
Class
Sound curve
sound curve

Tile details

Minimum installation height "
Easy access -

Packaging

Pieces Per Package 10
Area Per Pack m2
Back

Noise Reduce Coefficient (NRC)

αw 22
NRC 0.9
Class
Sound curve
sound curve

Tile details

Minimum installation height "
Easy access -

Packaging

Pieces Per Package 10
Area Per Pack m2
Back

Noise Reduce Coefficient (NRC)

αw 22
NRC 0.9
Class
Sound curve
sound curve

Tile details

Minimum installation height "
Easy access -

Packaging

Pieces Per Package 10
Area Per Pack m2
Back

Noise Reduce Coefficient (NRC)

αw 22
NRC 0.9
Class
Sound curve
sound curve

Tile details

Minimum installation height "
Easy access -

Packaging

Pieces Per Package 10
Area Per Pack m2
Back

Noise Reduce Coefficient (NRC)

αw 22
NRC 0.9
Class
Sound curve
sound curve

Tile details

Minimum installation height "
Easy access -

Packaging

Pieces Per Package 20
Area Per Pack m2
Back

Noise Reduce Coefficient (NRC)

αw 22
NRC 0.9
Class
Sound curve
sound curve

Tile details

Minimum installation height "
Easy access -

Packaging

Pieces Per Package 10
Area Per Pack m2
Back
  • Order Sample

Resources





Order pdf
icon
Rockfon® Medical Product Range Brochure

icon
Rockfon® University of Toronto Science & Chemistry Building Case Study

icon

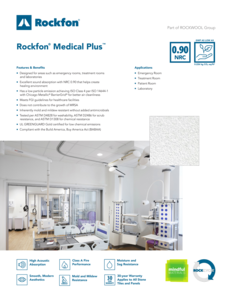

Rockfon® Medical™ Plus Datasheet

icon
Rockfon® Concealed Acoustical Ceiling Systems (CDX and SCD) Installation Guide

icon
Rockfon® Medical™ Plus Specification

icon
Rockfon® Medical™ Plus Specification CDN

icon
Rockfon® 30-Year Acoustical Tile Warranty
