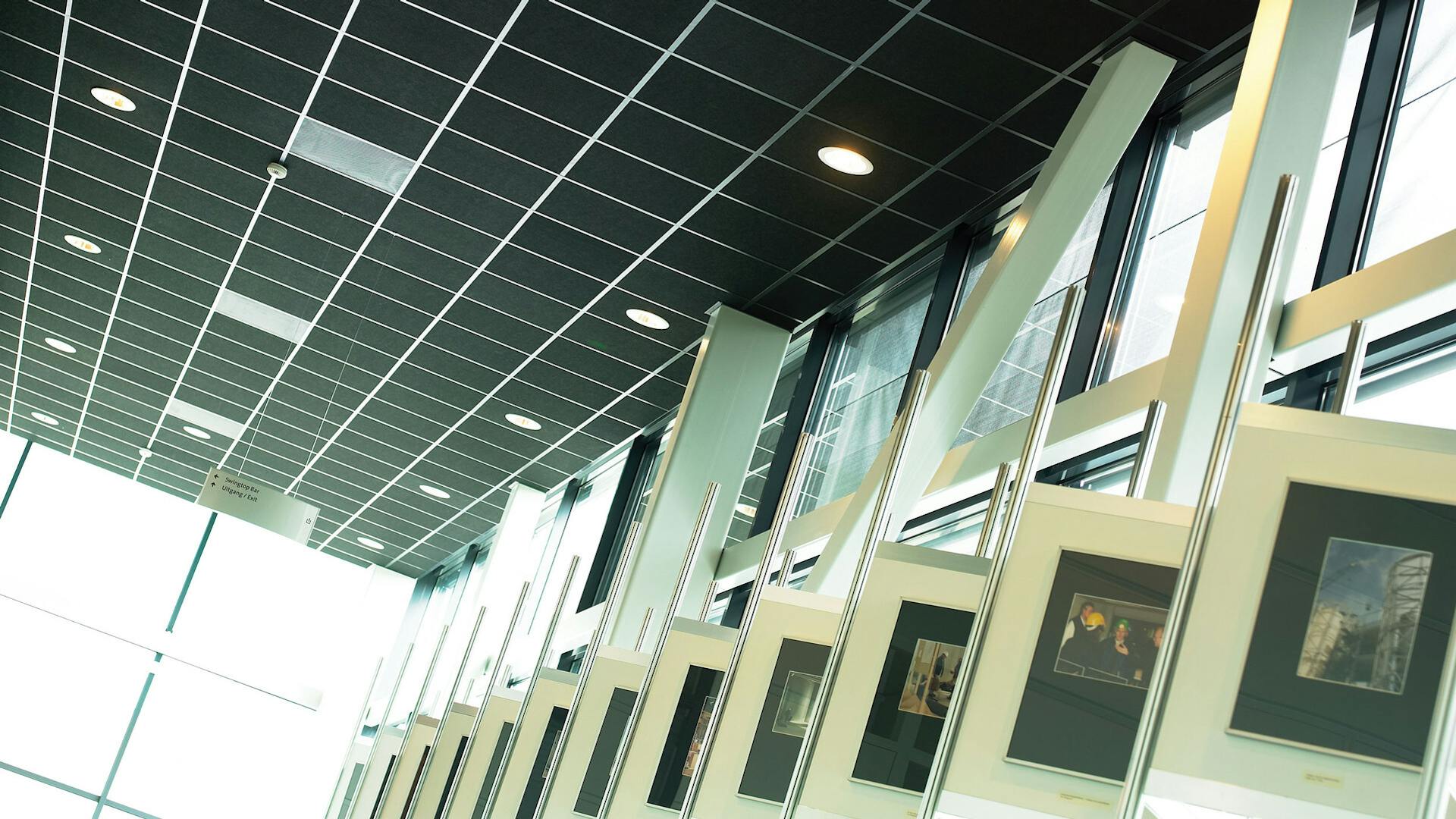

Rockfon® Industrial™ Black

This smooth, black industrial ceiling tile features excellent sound absorption and fire performance capabilities.

Budget

$ $ $ $ $

Back
  • Order Sample
For industrial applications
Excellent sound absorption (NRC = 1.05)
High fire performance
To create a new ceiling or place under an existing one
Available in square lay-in

Recommended Applications

Industry

Heavy Industry
Light Industry
Distribution / Warehouse

Back
  • Order Sample

Noise Reduce Coefficient (NRC)

Edge Thickness (ft/in) Min suspension height (in) αw NRC Class (ISO) Sound curve
SQ 2"
Sound curve

Sound absorption is measured in accordance with ISO 354.

Sound absorption data αp, αw and absorption class are calculated in accordance with ISO 11654. Sound absorption properties of islands and baffles are quantified by the equivalent sound absorption area Aeq expressed as m² per item.

Back
Sound curve

Product Specifications

Ceiling Attenuation Class (CAC) Ceiling Attenuation Class (CAC) 22
Room-to-room sound insulation is measured in accordance with ASTM E1414. The measured value is reported as a Ceiling Attenuation Class (CAC).
Articulation Class (AC) -
Speech privacy is measured in accordance with ASTM E1111. The measured value is reported as Articulation Class (AC).
Fire Performance Fire Performance
UL723 (ASTM E84) Flame Spread Index: 5
Smoke Developed Index (UL Labeled): 0
CAN/ULC S102 Flame Spread Index: 15
Smoke Developed Index: 5
Fire Class A
Light Reflection Light Reflection Light reflection: 0.04
Light reflection expressed in % is measured in accordance with ASTM E1477.
Humidity And Sag Resistance Humidity And Sag Resistance Up to 100% RH
Rockfon ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 32 °F to 104 °F. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimizes the final weight of the fully-installed ceiling.

*Rockfon® stone wool ceiling panels are dimensionally stable at up to 100% relative humidity.
Cleaning Cleaning Vacuum
Vacuum: The surface can be vacuum cleaned with a soft brush attachment.
Hygiene Hygiene Stone wool provides no sustenance to microorganisms
VOC Emissions All Rockfon stone wool acoustic solutions are GREENGUARD Gold low VOC certified and meet the State of California’s Department of Public Health Services Standard Practice for Specification Section 01350 (California Section 01350) for testing chemical emissions.

Selected potential applications: LEED, WELL, CHPS, Green Globes, BREEAM Int. and CALGreen.
Environment Environment Fully recyclable
Thermal Insulation Thermal Insulation R Value (BTU Units): 7.0
RSI Value (Watts Units): 1.23
The thermal resistance of Rockfon products is measured in accordance with ASTM C518 and expressed in R-Value (hr.ft2.F/Btu) and RSI Value (m2k/W).
Material Stone wool (Mineral Wool) ceiling tiles with factory painted glass scrim surface
ASTM E1264 Classification Type XX - Stone wool base with membrane-faced overlay, Pattern G
Warranty Warranty 30-Year Limited Product Warranty. See www.rockfon.com
Low VOC for NA Yes
Back
Room-to-room sound insulation is measured in accordance with ASTM E1414. The measured value is reported as a Ceiling Attenuation Class (CAC).
Back
Speech privacy is measured in accordance with ASTM E1111. The measured value is reported as Articulation Class (AC).
Back
Back
Back
Light reflection expressed in % is measured in accordance with ASTM E1477.
Back
Rockfon ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 32 °F to 104 °F. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimizes the final weight of the fully-installed ceiling.

*Rockfon® stone wool ceiling panels are dimensionally stable at up to 100% relative humidity.
Back
Vacuum: The surface can be vacuum cleaned with a soft brush attachment.
Back
Back
Back
Back
The thermal resistance of Rockfon products is measured in accordance with ASTM C518 and expressed in R-Value (hr.ft2.F/Btu) and RSI Value (m2k/W).
Back
Back
Back
Back

Colors

    • Black
      Black Light reflection:
Back
  • Order Sample

Configure your product

This product has 1 variants in different sizes.

01 Edge

02 Size

03 Summary

SQ

product image

Square lay in drop ceiling tiles are a cost-effective solution that provide easy access to the plenum area. They are compatible with both 15/16" and 9/16" acoustical suspension systems and are easily demountable.

illustration
Lay-in grid
Select length and width (in)
Select thickness (in)
Edge
Dimensions
Thickness

Full range

Edge Dimensions (ft/in) Thickness (ft/in) Weight (lbs/ft2) Recommended installation system
SQ 4' x 2' 2" 0.80

Noise Reduce Coefficient (NRC)

NRC 1.05

Tile details

Packaging

Pieces Per Package 4
Area Per Pack 32.00 ft2
Back

Noise Reduce Coefficient (NRC)

NRC 1.05
Class
Sound curve
sound curve

Tile details

Minimum installation height "
Easy access -

Packaging

Pieces Per Package 4
Area Per Pack m2
