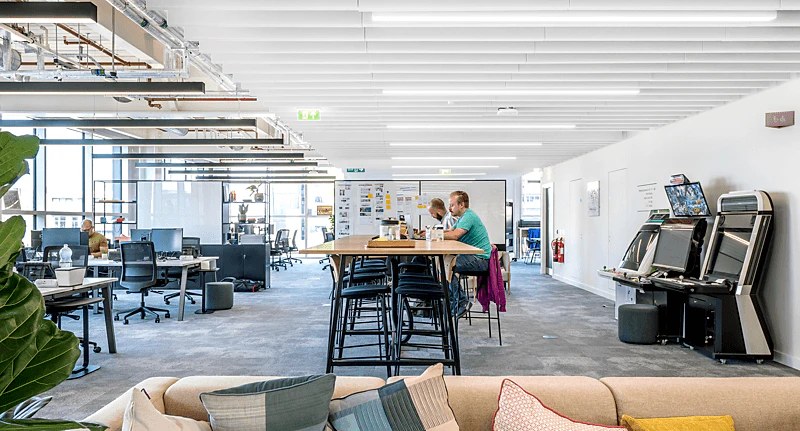

Rockfon® Contour™

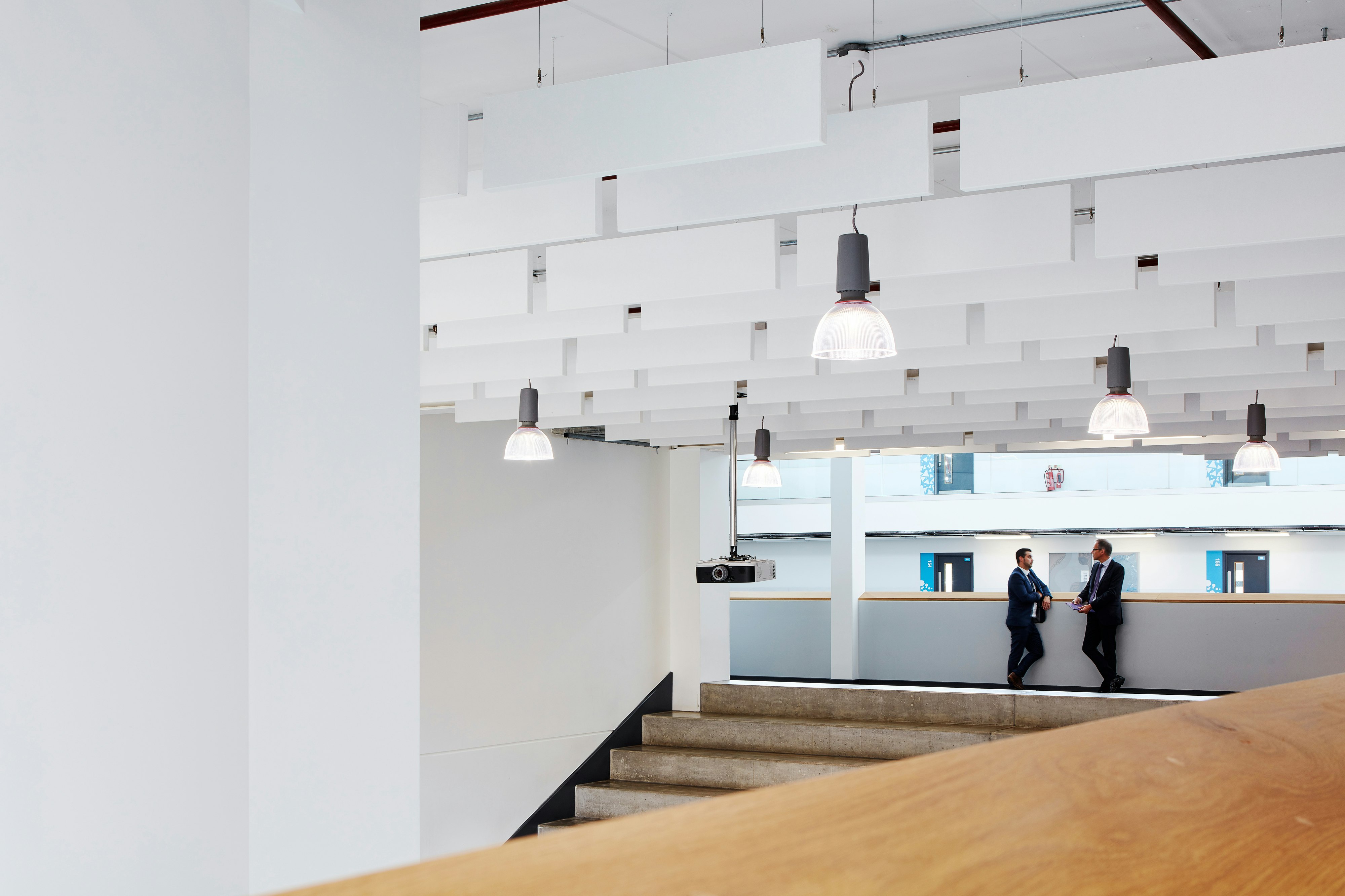

Rockfon® Contour™ acoustic ceiling baffles feature excellent sound absorption and fire performance and can be used to create a distinct linear ceiling look.

Budget

$ $ $ $ $

Back
  • Order Sample
Innovative and aesthetically-pleasing frameless acoustical baffle
High sound absorption contributes to acoustic comfort
Fast and easy to install
Ideally-suited for acoustical corrections

Recommended Applications

Office

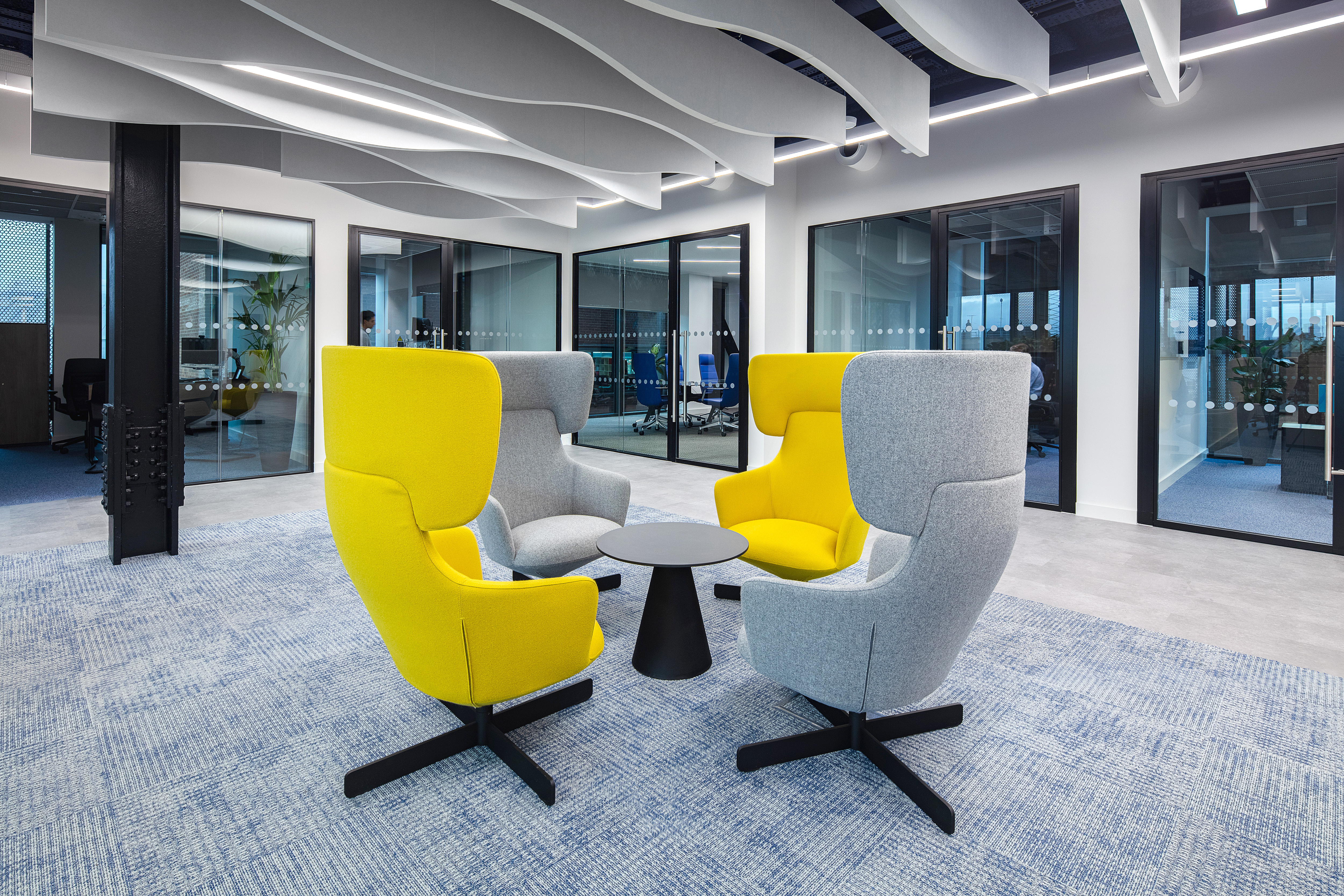

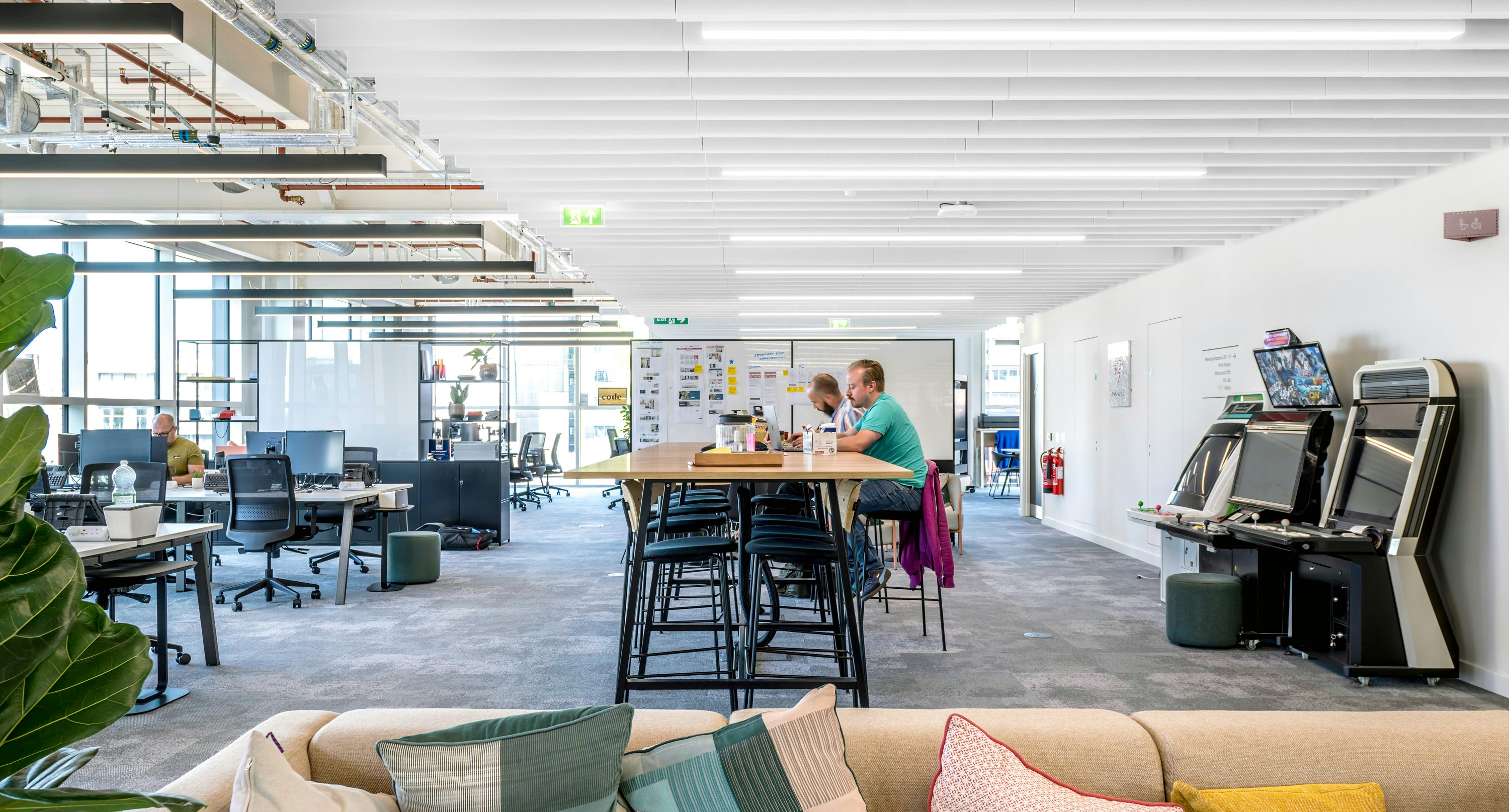

Open Plan Office
Reception
Lunchroom

Education

Auditorium
Library

Industry

Telecommunications

Leisure

Auditorium / Concert Hall
Museum
Stadium
Cafe/Restaurant

Healthcare

Cafeteria
Reception

Back
  • Order Sample

Noise Reduce Coefficient (NRC)

Edge Thickness (ft/in) Min suspension height (in) αw NRC Class (ISO) Sound curve
SQc 2"
Sound curve

Sound absorption is measured in accordance with ISO 354.

Sound absorption data αp, αw and absorption class are calculated in accordance with ISO 11654. Sound absorption properties of islands and baffles are quantified by the equivalent sound absorption area Aeq expressed as m² per item.

Back
Sound curve

Product Specifications

Fire Performance Fire Performance
UL723 (ASTM E84) Flame Spread Index: 0
Smoke Developed Index (UL Labeled): 5
CAN/ULC S102 Flame Spread Index: 5
Smoke Developed Index: 0
Fire Class A
Light Reflection Light Reflection Light reflection: 0.79
Light reflection expressed in % is measured in accordance with ASTM E1477.
Humidity And Sag Resistance Humidity And Sag Resistance Up to 100% RH
Rockfon ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 32 °F to 104 °F. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimizes the final weight of the fully-installed ceiling.

*Rockfon® stone wool ceiling panels are dimensionally stable at up to 100% relative humidity.
Cleaning Cleaning Vacuum
Vacuum: The surface can be vacuum cleaned with a soft brush attachment.
Hygiene Hygiene Stone wool provides no sustenance to microorganisms
VOC Emissions All Rockfon stone wool acoustic solutions are GREENGUARD Gold low VOC certified and meet the State of California’s Department of Public Health Services Standard Practice for Specification Section 01350 (California Section 01350) for testing chemical emissions.

Selected potential applications: LEED, WELL, CHPS, Green Globes, BREEAM Int. and CALGreen.
Environment Environment Fully recyclable
Material Stone wool (Mineral Wool) frameless baffle with factory painted glass scrim on both sides
ASTM E1264 Classification Type XX - Stone wool base with membrane-faced overlay, Pattern G
Warranty Warranty 30-Year Limited Product Warranty. See www.rockfon.com
Low VOC for NA Yes
Back
Back
Back
Light reflection expressed in % is measured in accordance with ASTM E1477.
Back
Rockfon ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 32 °F to 104 °F. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimizes the final weight of the fully-installed ceiling.

*Rockfon® stone wool ceiling panels are dimensionally stable at up to 100% relative humidity.
Back
Vacuum: The surface can be vacuum cleaned with a soft brush attachment.
Back
Back
Back
Back
Back
Back
Back

Colors

    • White
      White Light reflection: 0.79
Back
  • Order Sample

Configure your product

This product has 2 variants in different sizes.

01 Edge

02 Size

03 Summary

SQc

product image
product image
product image
product image
product image
product image
product image
product image
product image
product image
product image
product image

The Contour® edge features a minimalistic design with an elegant bevel.

illustration
Non-suspended solutions
Select length and width (in)
Select thickness (in)
Edge
Dimensions
Thickness

Full range

Edge Dimensions (ft/in) Thickness (ft/in) Weight (lbs per unit)   Recommended installation system
SQc 48" x 12" 2" 4.60

Noise Reduce Coefficient (NRC)

Tile details

Packaging

Pieces Per Package
Area Per Pack ft2
SQc 48" x 24" 2" 4.60

Noise Reduce Coefficient (NRC)

Tile details

Packaging

Pieces Per Package
Area Per Pack ft2

*Rockfon Contour is not suitable for use in swimming pools or outdoors.
