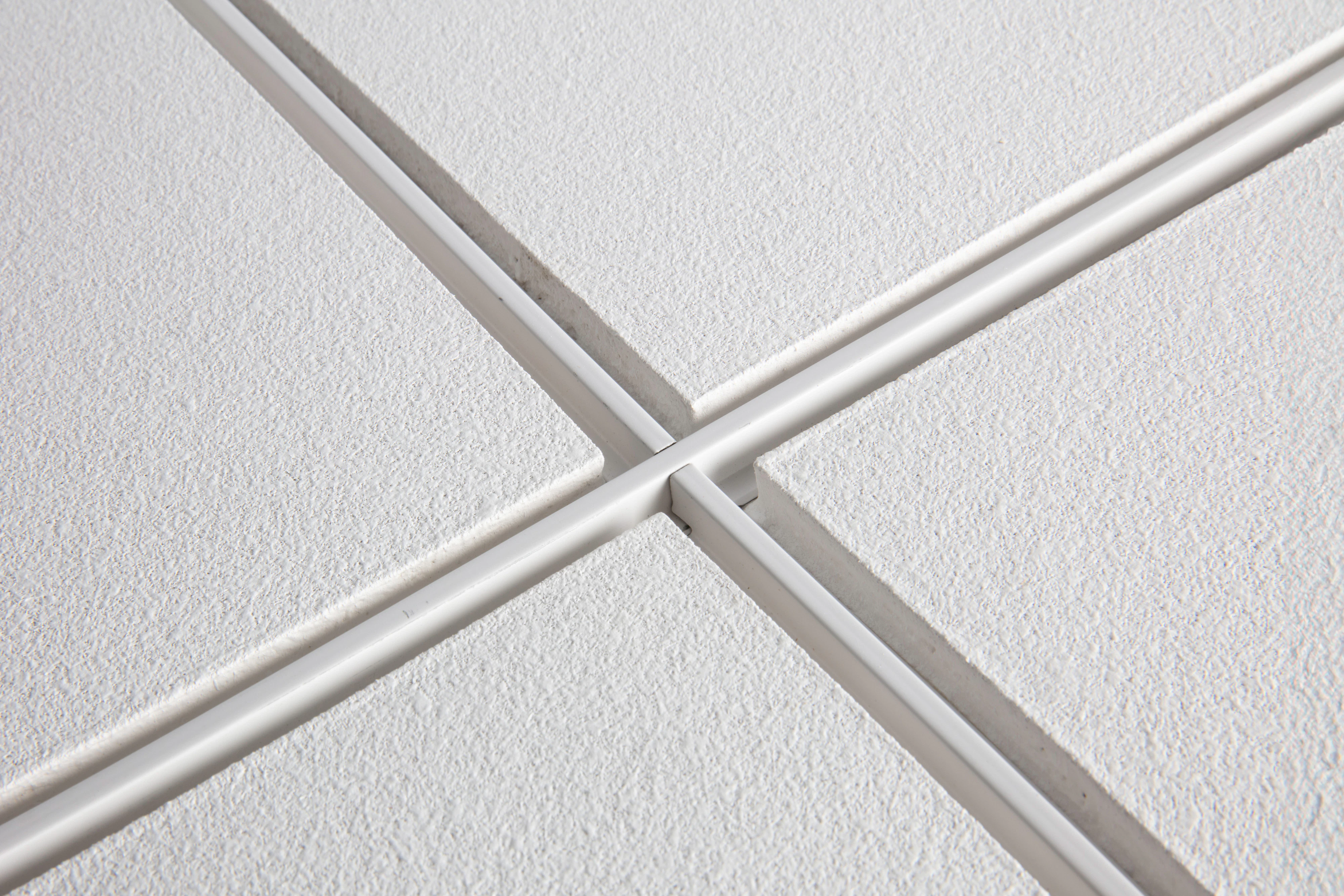

Chicago Metallic® 4200 Integrity™ 9/16" Exposed drop ceiling grid system is built with HDG 30 steel and features a heavy-duty design. Every one of our grid systems is third party certified to meet ASTM standards and is listed with ICCES Evaluation Services, reference report ESR-2631 for more information. This acoustical ceiling grid features seismically approved stab-end cross tees with a narrow face that creates a premium double-reveal aesthetic.

Performance Properties:
-Grid system is designed with stab-end cross tees and has a heavy-duty design
-Creates a premium, double reveal design aesthetic
-Non-mitered intersections allow for design flexibility and ease of installation
-Sustainable: Minimum 25% recycled content,100% locally recyclable
-Chicago Metallic® suspension systems meet a Class-A flame spread rating in accordance with ASTM standard E1264-08

Available in the following standard colors, Rockfon® Color-all™ colors, and RAL color options.

Grid Colors

    • 01 White
      01 White
    • 08 Black
      08 Black
    • 44 Satin Silver
      44 Satin Silver
    • Color-all
      Color-all
    • RAL
      RAL

Material

ASTM C 635 Heavy Duty (HD), commercial quality steel, G30 hot-dip galvanized body and cap, 9/16" width, 1-15/16" and 1-13/16" heights.
Note: A metallurgist should be consulted regarding the suitability of this product for the environmental conditions in which it is being installed.

Application Areas

Hospitals, hospitality, retail, airports, ​transit, galleries, and offices.
Back

Product Performance

Load Bearing Expand to view deflection table
 Component Load Test Data and Material
Main Tee Length Allowable Load per ASTM C635
Hanger Spacing
4' 5' 6'
Cross Tee Length 2' 3' 4' 5' 6'
4200.01 144" HD
4202.01 24" 24.5▲
4204.01 48" 12.9
4206.01 72" 27.3*▲
4208.01 96" 12.5*▲
4211.01 4"
4212.01 6"

To convert data into lb/ft2, divide on center spacing of component into lb/ft.
▲ Limited by safety factor of 2.
• Wire at mid-point of member
Note: For 6’ and 8’ cross tee spans with no hanger support at mid-point of member, please contact Technical Ser

 Light Fixture Load Test Data (based on 1/360 span deflection)
Dimensions Light Fixtures
Main & Cross Tees - Allowable Fixture Weight – Pounds
4200.01 4202.01 4200.01 4204.01
2’ x 2’ 38.8
2’ x 4’ 49.6 44.0▲

▲ Limited by safety factor of 2.

Non-Fire Rated Assemblies Hanger Positions for Non-Fire Rated Situations
This illustrates hanger positions for single fixtures in a field. Provide extra hangers for tandem fixtures.
Environment Materials and Resources (MR)
-Waste Management Planning
-Interiors Life Cycle Impact Reduction
-Environmental Product Declarations
-Sourcing of Raw Materials
-Material Ingredients
-Waste Management
Indoor Environmental Quality (EQ)
-Low-Emitting Materials
-Interior Lighting
-Acoustic Performance
Back
 Component Load Test Data and Material
Main Tee Length Allowable Load per ASTM C635
Hanger Spacing
4' 5' 6'
Cross Tee Length 2' 3' 4' 5' 6'
4200.01 144" HD
4202.01 24" 24.5▲
4204.01 48" 12.9
4206.01 72" 27.3*▲
4208.01 96" 12.5*▲
4211.01 4"
4212.01 6"

To convert data into lb/ft2, divide on center spacing of component into lb/ft.
▲ Limited by safety factor of 2.
• Wire at mid-point of member
Note: For 6’ and 8’ cross tee spans with no hanger support at mid-point of member, please contact Technical Ser

 Light Fixture Load Test Data (based on 1/360 span deflection)
Dimensions Light Fixtures
Main & Cross Tees - Allowable Fixture Weight – Pounds
4200.01 4202.01 4200.01 4204.01
2’ x 2’ 38.8
2’ x 4’ 49.6 44.0▲

▲ Limited by safety factor of 2.

Back
Back

Accessories

148780_r1_ROC_GridDS_EPSFiles_SingleImages_4200

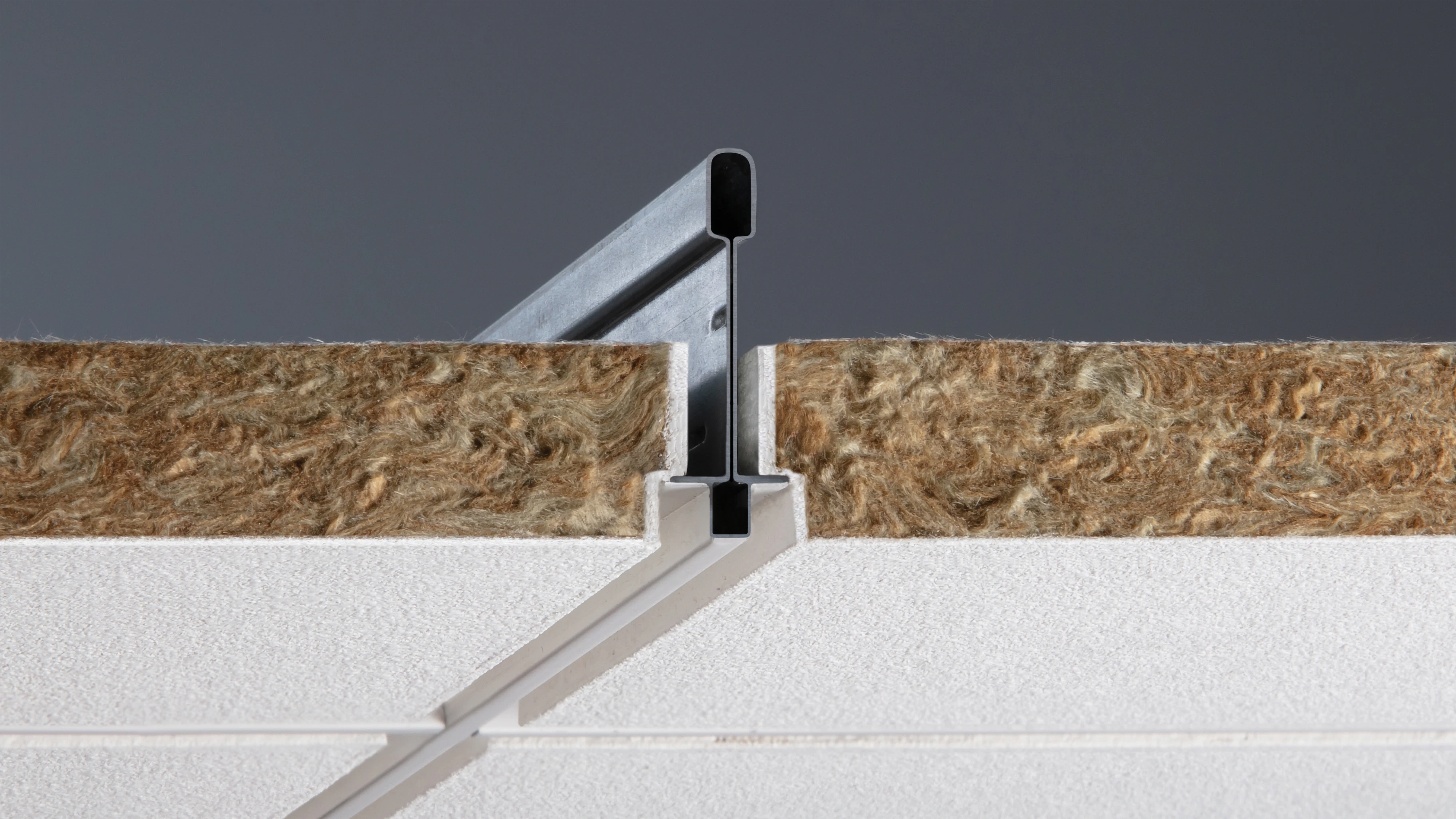

Compatible Tile Edge Types

Compatible tile edge type image example

4200 System

Back

Profiles and Accessories

Main Runners

Component Length Height Face Width Slot Spacing Seismic Recycled Content Percentage Slotting Class Duty HDG Coating Packaging
Main Runners RFN-NA
Main Runner_4200.jpg 144" 1-15/16" 9/16" 6" OC C, DEF 25% 6" OC, HD HD G30 See Packaging Dimensions

Cross Tees

Component Length Height Face Width Slot Spacing Seismic Recycled Content Percentage Slotting Class Grid Coupling Type HDG Coating Packaging
Cross Tees RFN-NA
Cross Tee_4200.jpg 24" 1-13/16" 9/16" No Slots C, DEF 25% No Slots Stab-End G30 See Packaging Dimensions
Cross Tee_4200.jpg 48" 1-13/16" 9/16" 12" OC C, DEF 25% 12" OC Stab-End G30 See Packaging Dimensions
Cross Tee_4200.jpg 72" 1-13/16" 9/16" 24" OC C, DEF 25% 24" OC Stab-End G30 See Packaging Dimensions
Cross Tee_4200.jpg 96" 1-13/16" 9/16" 24" OC C, DEF 25% 24" OC Stab-End G30 See Packaging Dimensions
Cross Tee_4200.jpg 6" 1-13/16" 9/16" No Slots C, DEF 25% No Slots Stab-End G30 See Packaging Dimensions
Cross Tee_4200.jpg 4" 1-13/16" 9/16" No Slots C, DEF 25% No Slots Stab-End G30 See Packaging Dimensions

Wall Angles & Channels

Component Length Height Face Width Seismic Recycled Content Percentage Packaging
Wall Angles RFN-NA
Wall Angles_830.jpg 144" 15/16" 15/16" C, DEF 25% See Packaging Dimensions
Wall Angle_G90.jpg 144" 9/16" 15/16" C, DEF 25% See Packaging Dimensions
Wall Angle_G90.jpg 144" 15/16" 1-3/16" C, DEF 25% See Packaging Dimensions

Shadow Moldings

Component Length Height Face Width Seismic Recycled Content Percentage Slotting Class Packaging
Shadow Moldings RFN-NA
Wall Moldings_200.jpg 120" 3/4" 3/4" C 25% 3/8" Reveal See Packaging Dimensions
Wall Moldings_200.jpg 120" 3/4" 3/4" C 25% 3/4" Reveal See Packaging Dimensions
Wall Moldings_200.jpg 120" 15/16" 9/16" C 25% 3/8" Reveal See Packaging Dimensions
Wall Moldings_200.jpg 120" 15/16" 15/16" C 25% 1/4" Reveal See Packaging Dimensions
Wall Moldings_200.jpg 120" 3/4" 15/16" C 25% 3/8" Reveal See Packaging Dimensions
